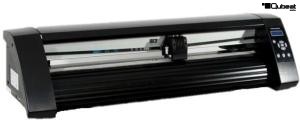

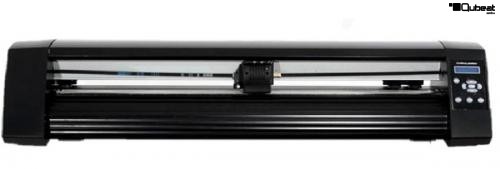

Cutting plotter 870 mm

Cutting plotter 870 mm

Inventory: kein Bestand mehr
Product No.: 3309
Shipping time: not available


579,99 EUR
incl. 19 % Tax
(P2): €14,90 to DE




Cutting plotter 870 mm
Cutting plotter 870 mm
Cutting plotter 870 mm
Cutting plotter 870 mm
Cutting plotter 870 mm
Cutting plotter 870 mm


Expand your possibilities on the sector of advertisement and textile print.
Create your designs as a vector graphic and send these to the cutting plotter.
It cuts out designs desired, and after pulling the leftovers from the foil, you can hang your designs on T-shirts, pullovers, cars or windows.
The cutting plotter cuts you out everything, from small signature logos and large banners to fine T-shirt prints.
It doesn´t matter whether you wish to use a smooth, thin foil or a soft, thick flock foil.
Also self-adhesive foils for outdoor advertising, for windows or doors, or for sticking on cars, can be cut quickly and easily.
Tecnical details:
Max. cutting area 780 mm
Max. media width 840 mm
Memory 4 MB
Roll intake Cutting directly from the roll possible
Max. speed to 800mm/sec
Mechanical resolution 0.0254mm/Step

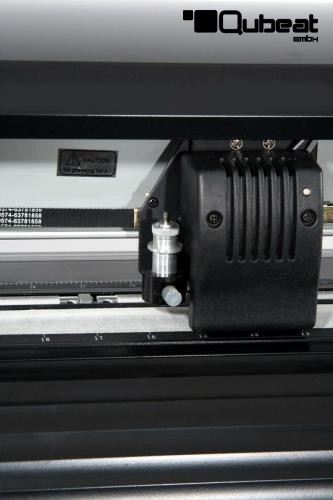

Knife pressure 50 - 500g
Plotter language PL/HT-GL (TM)
DMPL/HPGL

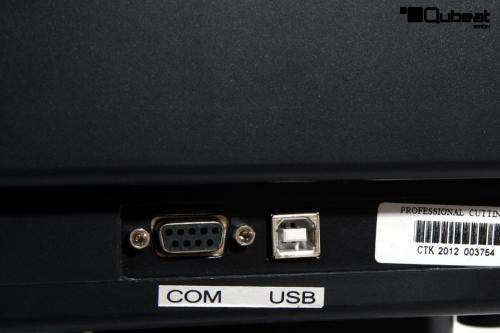

Interfaces Seriell + USB
Power consumption AC90V--240V
Temperature operating environment /
Humidity
5°C to 35°C /
5% - 95% (Not condensing)

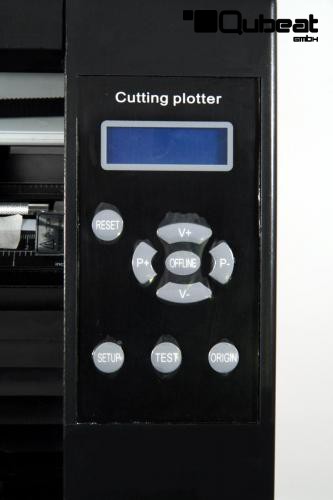

The cutting speed and knife pressure can be set directly on the device.
You can set a new starting point individually and reduce the cutting loss.
The device has a testing function with which you can find out the right knife setting for your cutting process and foil.



If you dont want delivery, after telephonic agreement (contact) you can pick up this article at our warehouse 16775 Gransee.

This Product was added to our catalogue on Friday, 31. August 2012.
